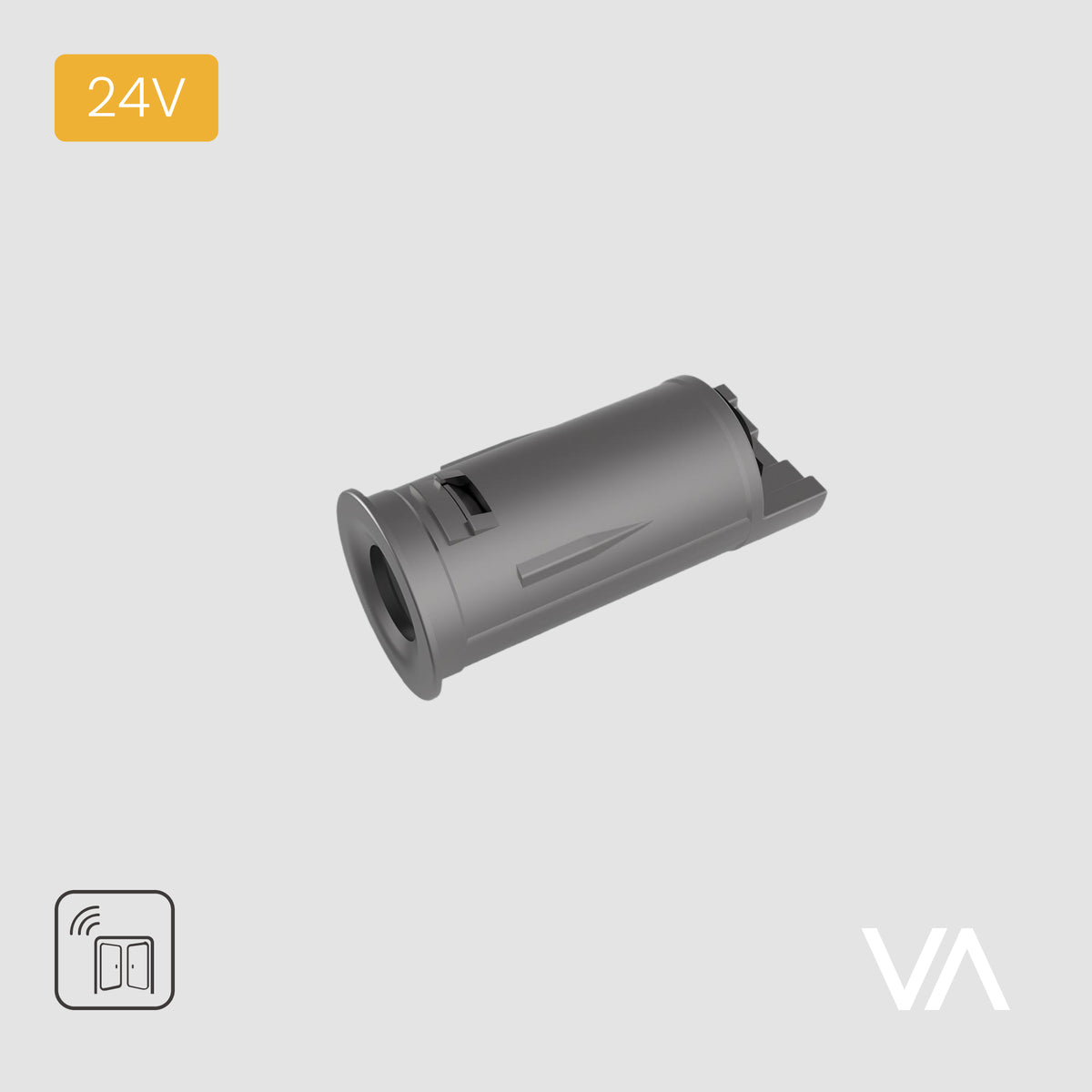

VOXAURA Stick Sensor Switch, WS3001, 24V, open/close

Documentation
Brochure
CAD Data
Installation Manual
Product description

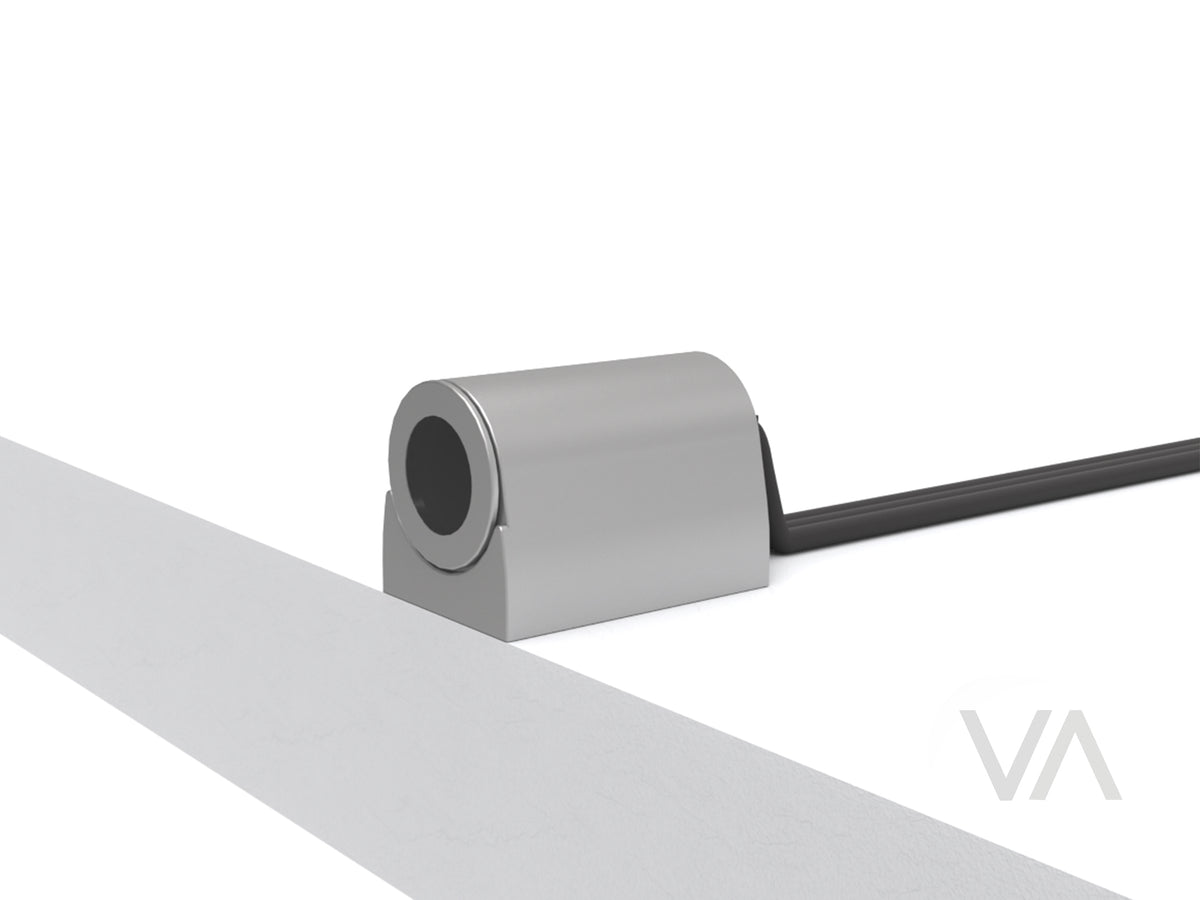

The WS3001 wired IR door sensor switch provides control for compatible 12/24 V integrated LED drivers. Designed for a single door, the infrared sensor automatically switches the light on or off as the door opens or closes, with a detection range of up to 7 cm.

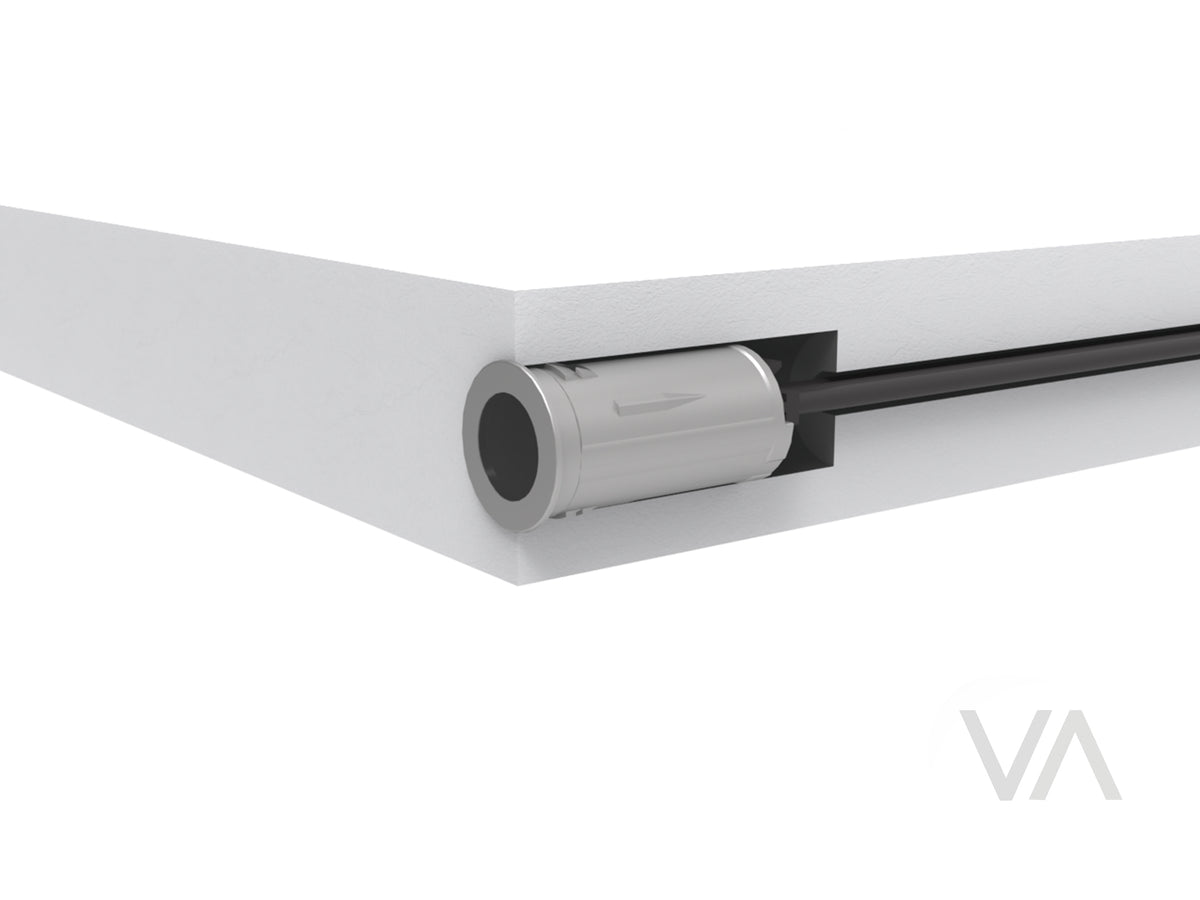

Connect the sensor to the driver’s switch socket and the lights to its lighting outputs, so switching is managed through the driver. Designed for use with integrated drivers only, the grey IP20 housing snaps into place for a compact installation.

Specifications and selection

SKU 121.00.02.003

  • Dimensions (LxWxH): 26.4 x 13.5 mm
  • Colour / Finish: grey
  • Material: plastic
  • Control method: open/close
  • Detection range: 0 - 70 mm
  • Detection angle: straight ahead
  • Drill hole: ? 12 x 35 mm

Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.

Product features
SKU
121.00.02.003
Dimensions (LxWxH)
26.4 x 13.5 mm
Colour / Finish
grey
Material
plastic
Control method
open/close
Detection range
0 - 70 mm
Detection angle
straight ahead
Drill hole
? 12 x 35 mm
