VOXAURA COB LED-Ribbon, LS4030, 24V, 5W/m, 5mm, 2-pin Monochrome, 320 LEDs/m, IP20, 5m

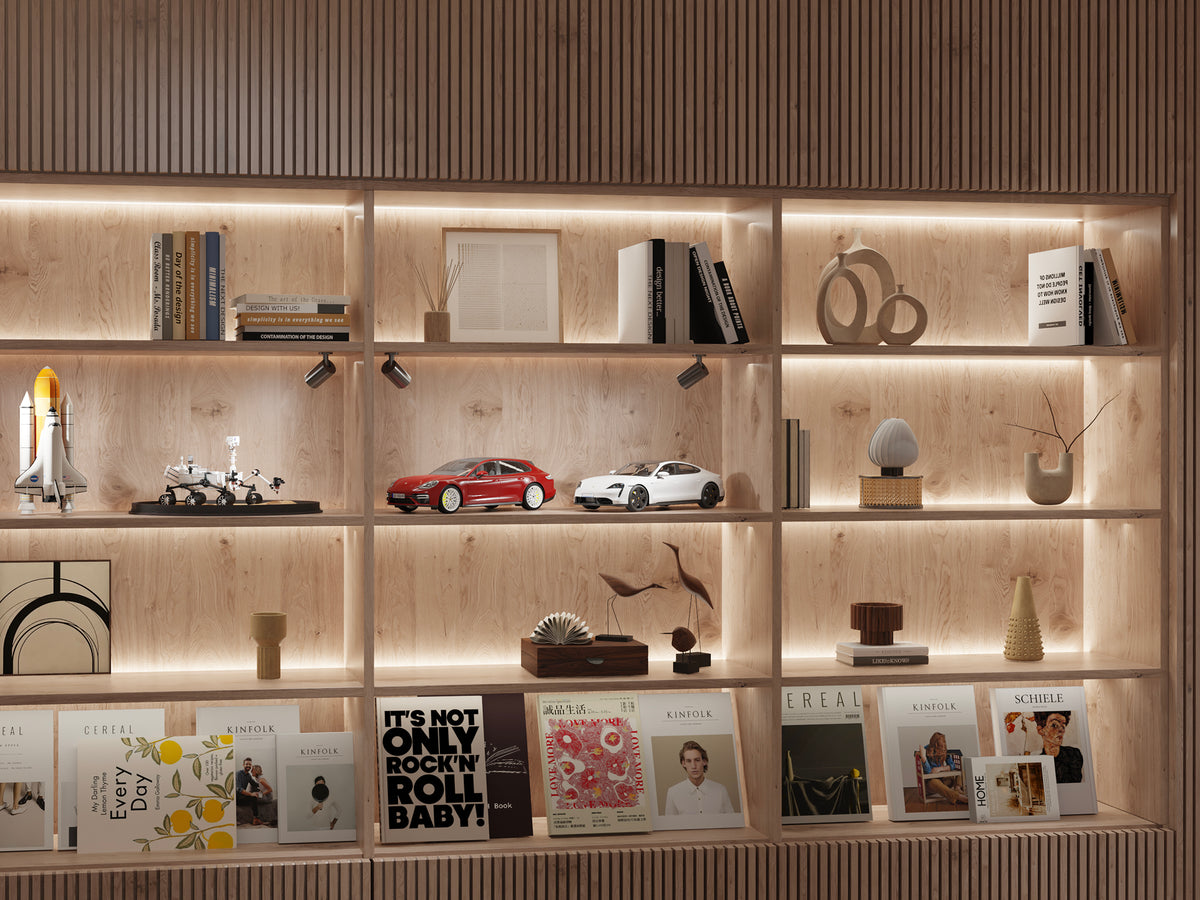

The LS4030 COB LED ribbon provides white light for furniture lighting. The ribbon is 5 mm wide and operates at 24 V DC, consuming 5 W/m. Light output is 450–500 lm/m, depending on the selected colour temperature. CRI 93 supports accurate colour rendering. It is dimmable with compatible controls and rated IP20. Available in separate 2700 K, 3000 K, 4000 K and 5000 K variants.

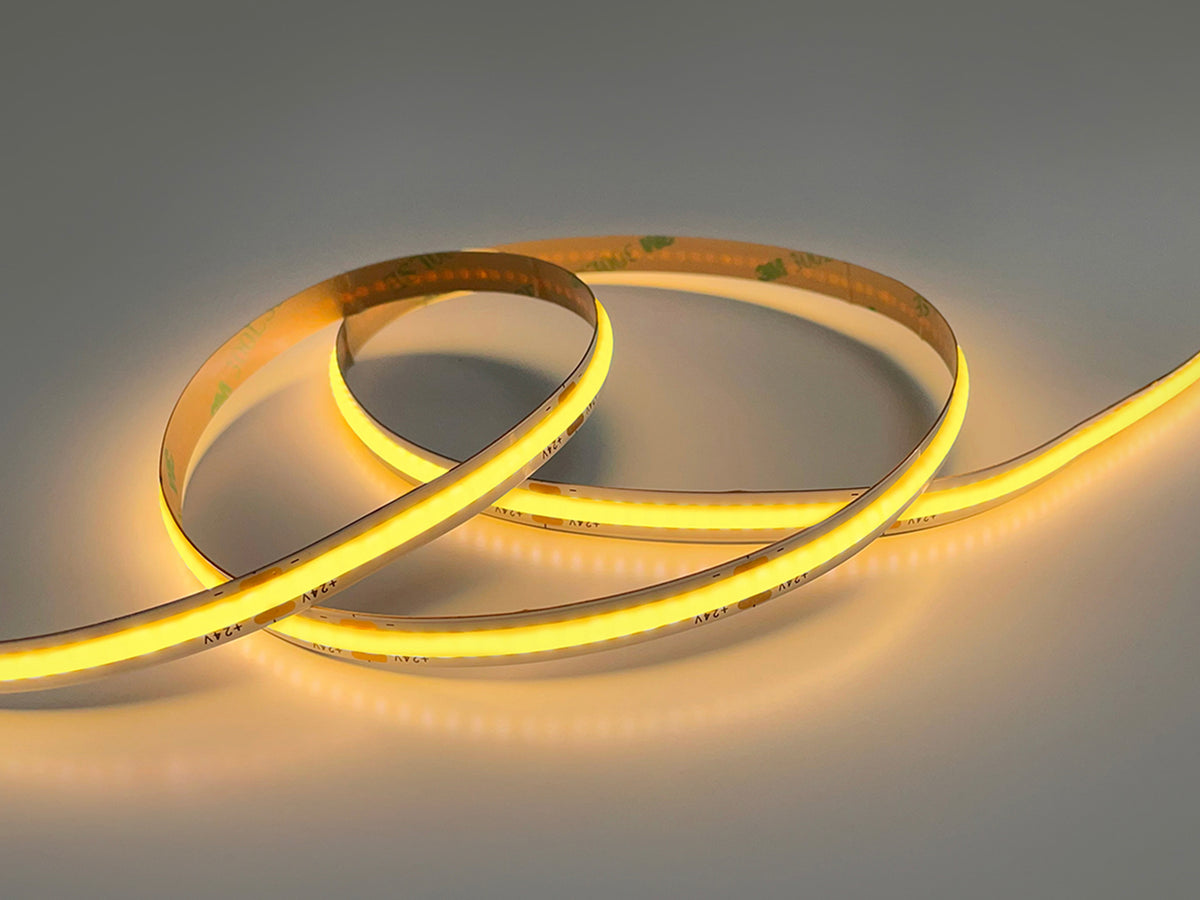

COB technology produces an even line of light without visible LED dots and a wide 180° beam.
Supplied as one 5 m roll. Self-adhesive backing supports installation. A 2 m connecting cable and matching 2-pin, 5 mm straight connectors and 90° corner connectors are sold separately. A compatible integrated driver or Smart-Driver system is sold separately. Size the driver for the installed ribbon length plus all other connected loads, keeping the combined wattage within its rated output.
Specifications and selection
SKU 200.10.00.028
- Colour System: Monochrome, 2-pin
- Colour Temperature: 5000 K
- Colour Rendering Index Ra: 93
- Luminous Flux: 500 lm/m
- Lumen Efficacy: 100 lm/W
- Dimensions (LxWxH): 5000 x 5 x 1.3 mm
- Colour / Finish: silver
- Material: plastic
- Strip Length: 5 m
- Strip Width: 5 mm
- Strip Height: 1.50 mm
- Number of LEDs: 320/m
- Input Voltage: 24 V DC
- Wattage: 5 W/m
- Beam Anngle: 180°
- with Sensor: no
- Energy Efficiency Class: F
- Degree of Protection: IP20
- Installation: self-adhesive
SKU 200.10.00.027
- Colour System: Monochrome, 2-pin

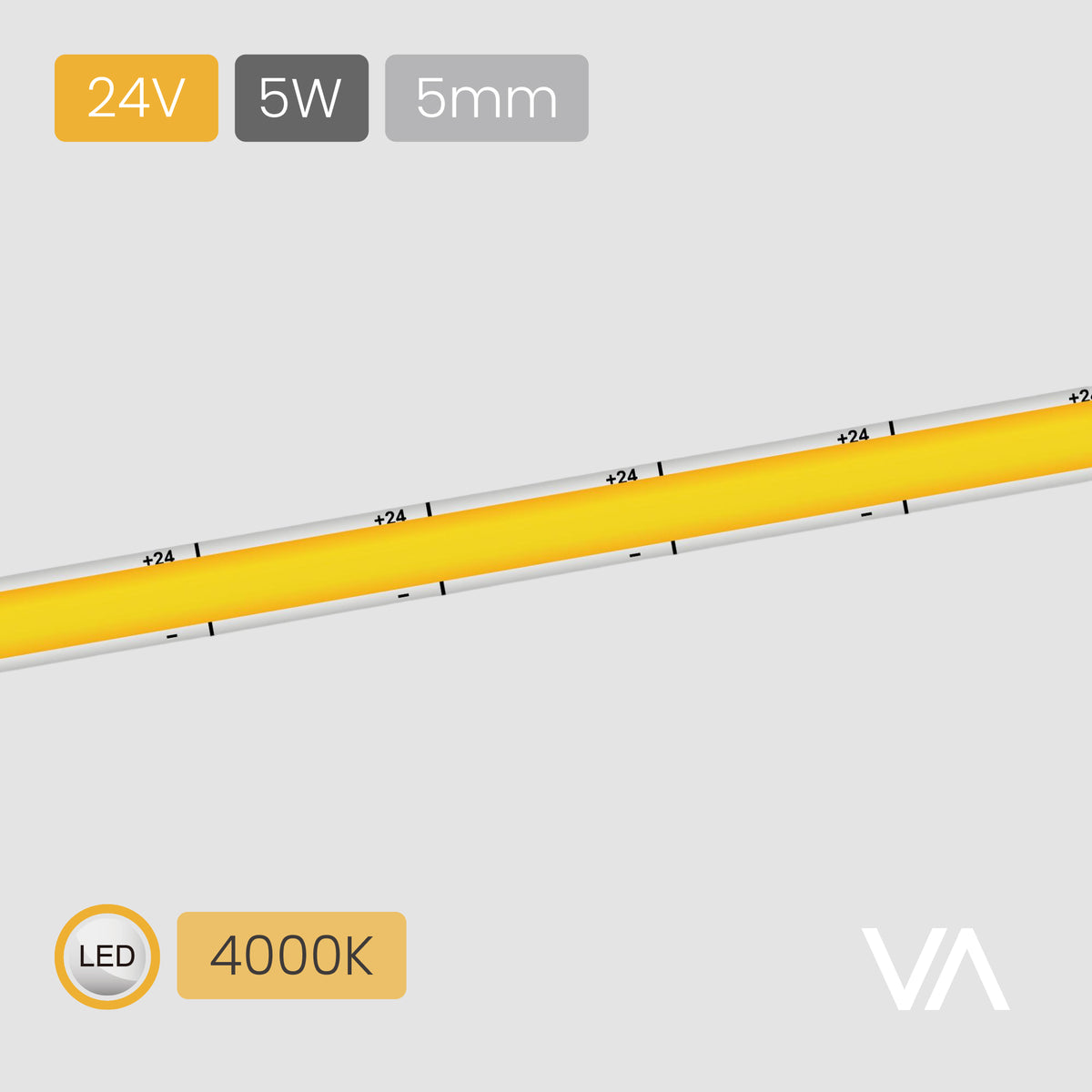

- Colour Temperature: 4000 K
- Colour Rendering Index Ra: 93
- Luminous Flux: 500 lm/m
- Lumen Efficacy: 100 lm/W
- Dimensions (LxWxH): 5000 x 5 x 1.3 mm
- Colour / Finish: silver
- Material: plastic
- Strip Length: 5 m
- Strip Width: 5 mm
- Strip Height: 1.50 mm
- Number of LEDs: 320/m
- Input Voltage: 24 V DC
- Wattage: 5 W/m
- Beam Anngle: 180°
- with Sensor: no
- Energy Efficiency Class: F
- Degree of Protection: IP20
- Installation: self-adhesive
SKU 200.10.00.026
- Colour System: Monochrome, 2-pin
- Colour Temperature: 3000 K
- Colour Rendering Index Ra: 93
- Luminous Flux: 475 lm/m
- Lumen Efficacy: 95 lm/W
- Dimensions (LxWxH): 5000 x 5 x 1.3 mm
- Colour / Finish: silver
- Material: plastic
- Strip Length: 5 m
- Strip Width: 5 mm
- Strip Height: 1.50 mm
- Number of LEDs: 320/m
- Input Voltage: 24 V DC
- Wattage: 5 W/m
- Beam Anngle: 180°
- with Sensor: no
- Energy Efficiency Class: F
- Degree of Protection: IP20
- Installation: self-adhesive
SKU 200.10.00.025
- Colour System: Monochrome, 2-pin

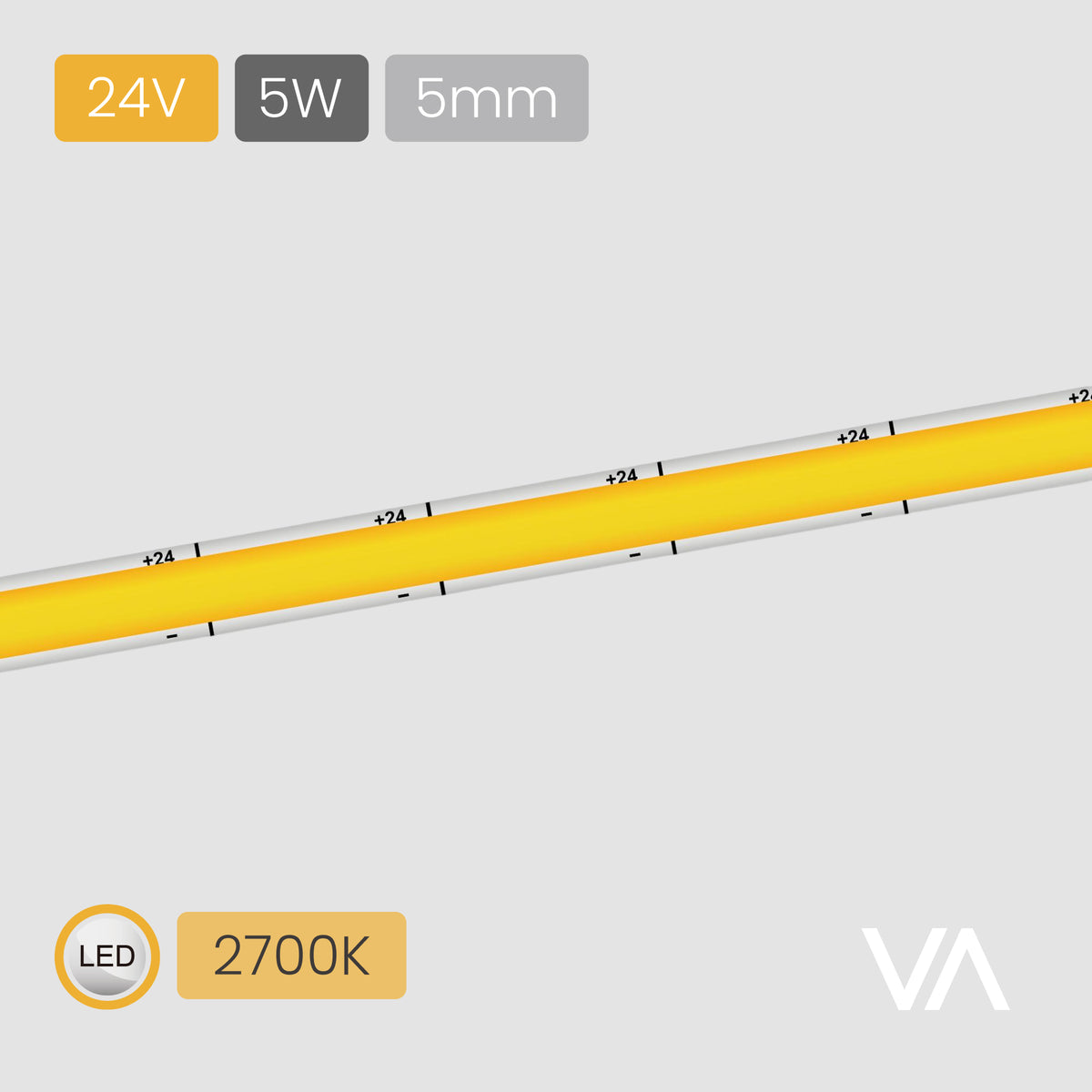

- Colour Temperature: 2700 K
- Colour Rendering Index Ra: 93
- Luminous Flux: 450 lm/m
- Lumen Efficacy: 90 lm/W
- Dimensions (LxWxH): 5000 x 5 x 1.3 mm
- Colour / Finish: silver
- Material: plastic
- Strip Length: 5 m
- Strip Width: 5 mm
- Strip Height: 1.50 mm
- Number of LEDs: 320/m
- Input Voltage: 24 V DC
- Wattage: 5 W/m
- Beam Anngle: 180°
- with Sensor: no
- Energy Efficiency Class: F
- Degree of Protection: IP20
- Installation: self-adhesive
Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.
Product features
Technical Features
