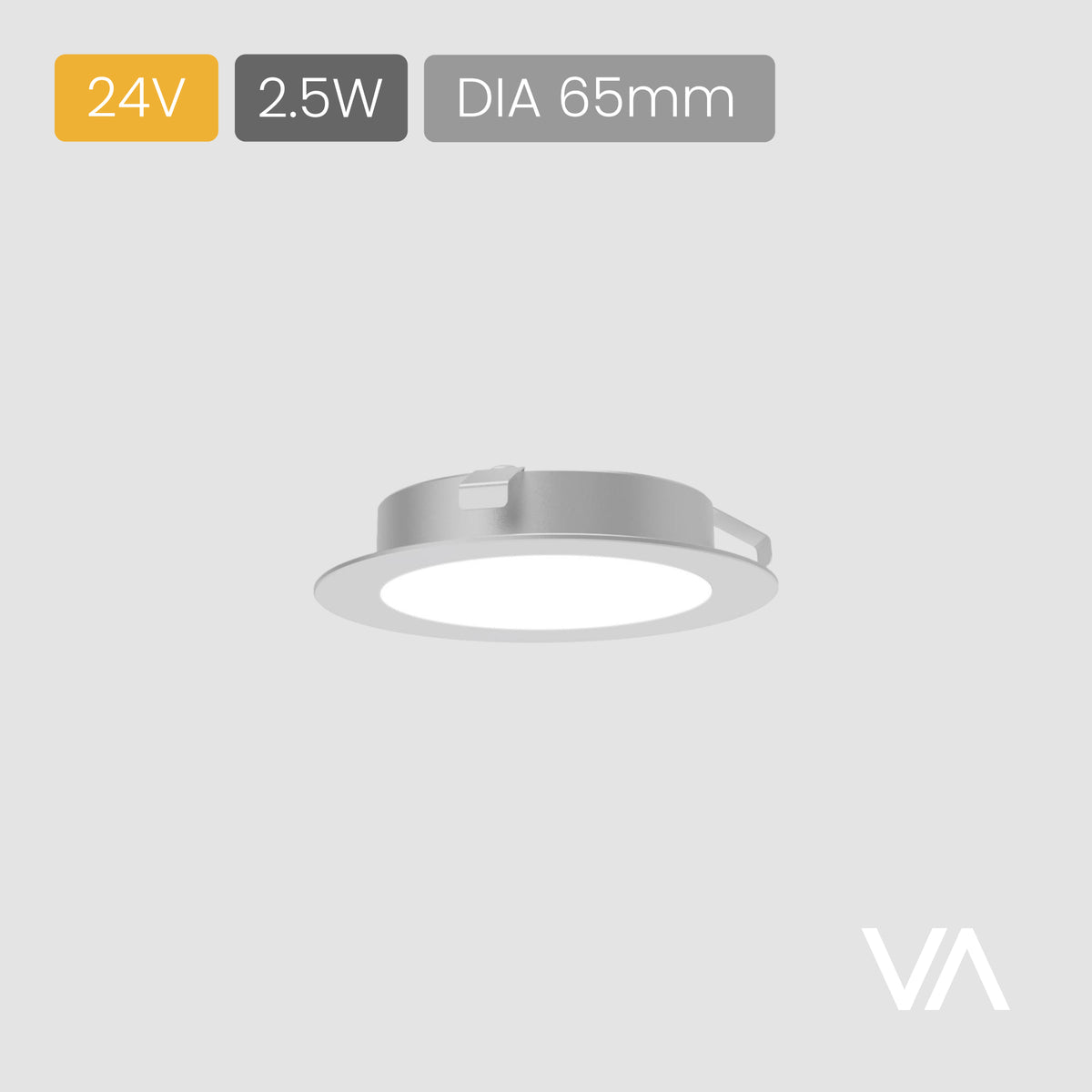

VOXAURA Down light, SL4004, 24V, 2.5W, 2-pin Monochrome, DIA 65mm, Silver-grey

Colour Temperature: 3000K
Documentation
Brochure
CAD Data1
CAD Data2
Installation Manual
Product description

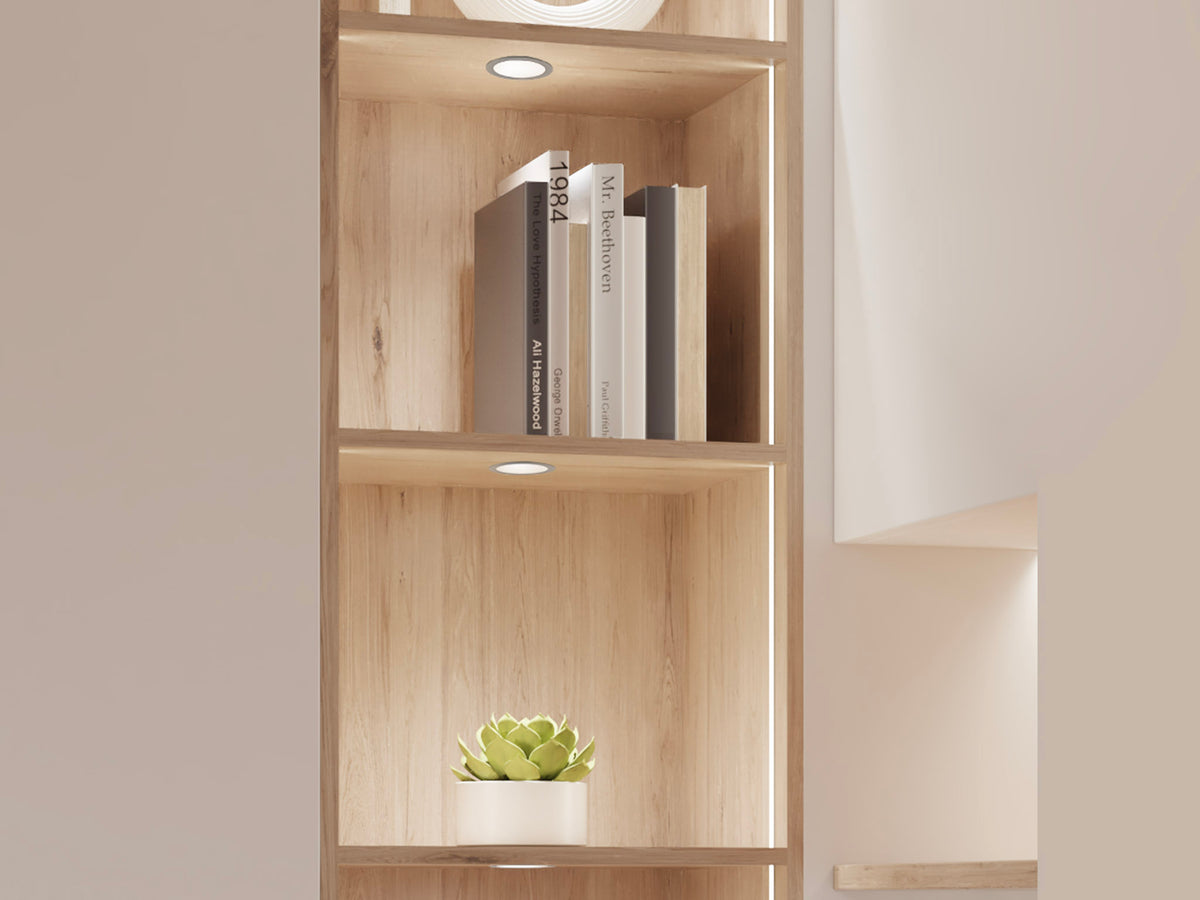

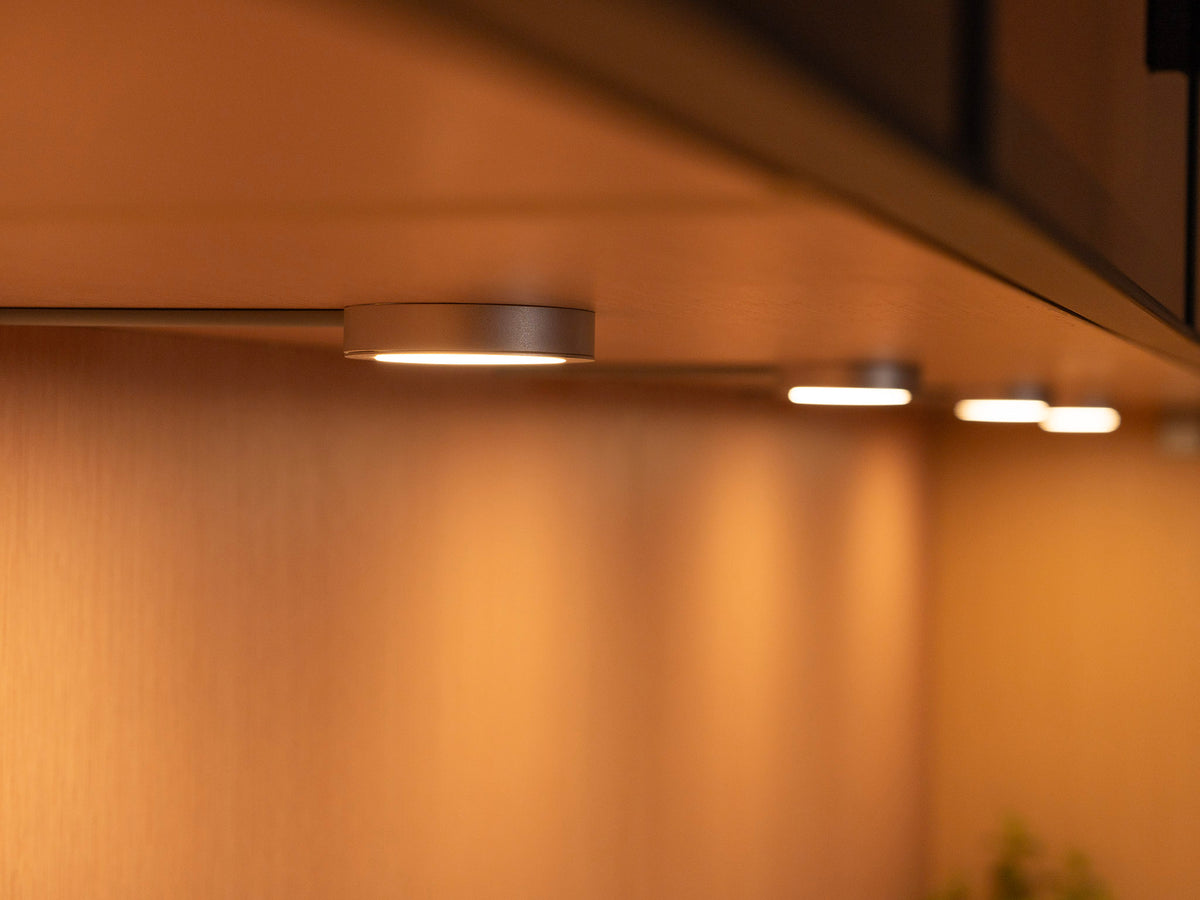

The SL4004 round downlight provides white light for cabinets, shelves and displays. Operating at 24 V and 2.5 W, it features a 65 mm diameter, CRI 93, a 120° beam and dimming with compatible controls. Its IP20 housing supports recessed or surface mounting. Available in separate 3000 K and 4000 K variants.

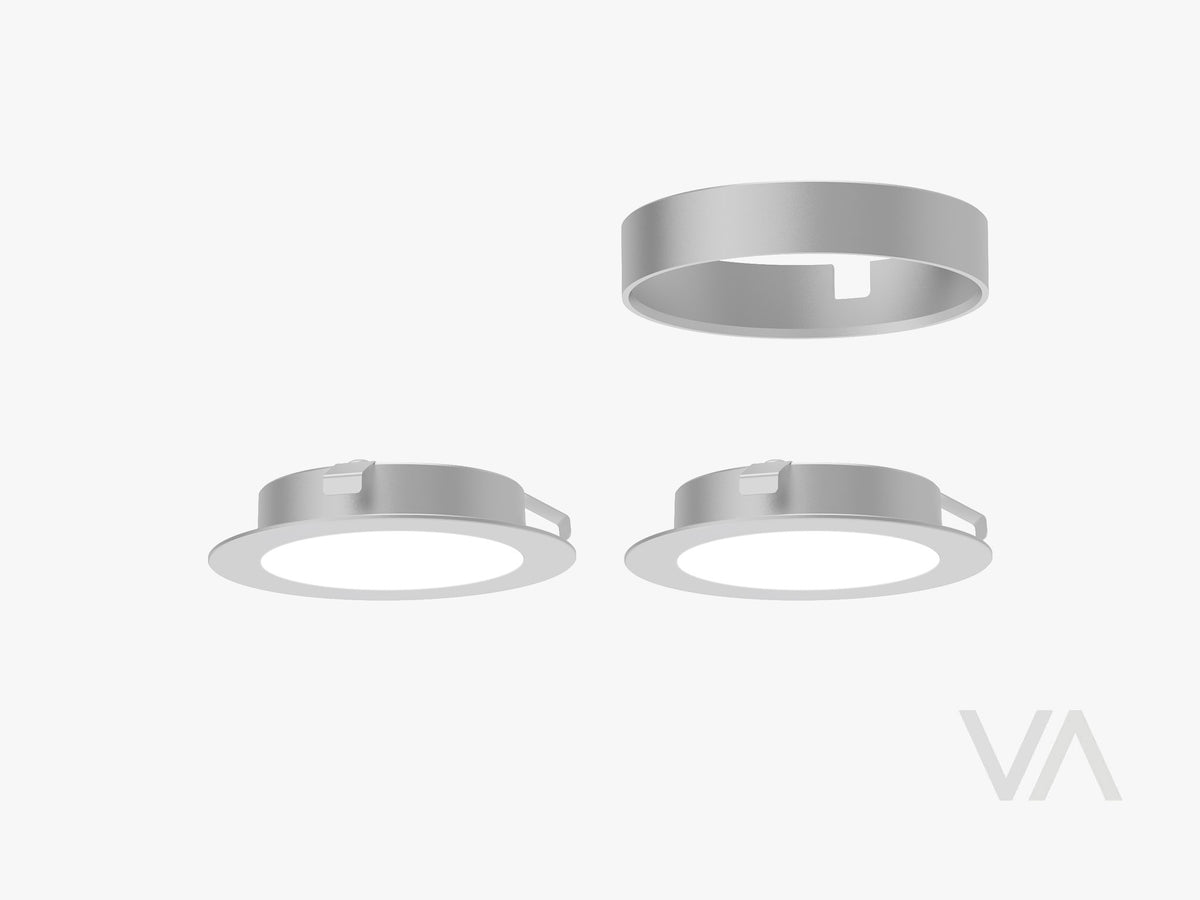

Supplied as one light with a 2 m connecting cable. The base required for surface mounting is sold separately.

Specifications and selection

SKU 203.10.22.005

  • Colour System: Monochrome, 2-pin
  • Colour Temperature: 4000 K
  • Kind of Light: Down Light
  • Colour Rendering Index Ra: 93
  • Luminous Flux: 305 lm/m
  • Lumen Efficacy: 122 lm/W
  • Dimensions (LxWxH): 65 x 13.7 mm
  • Colour / Finish: stainess steel
  • Material: aluminium + stainless steel
  • Number of LEDs: 40/m
  • Input Voltage: 24 V DC
  • Wattage: 2.5 W
  • Beam Anngle: 120°
  • with Sensor: no
  • Energy Efficiency Class: E
  • Degree of Protection: IP20
  • Drill hole: Ø 58 x 13 mm

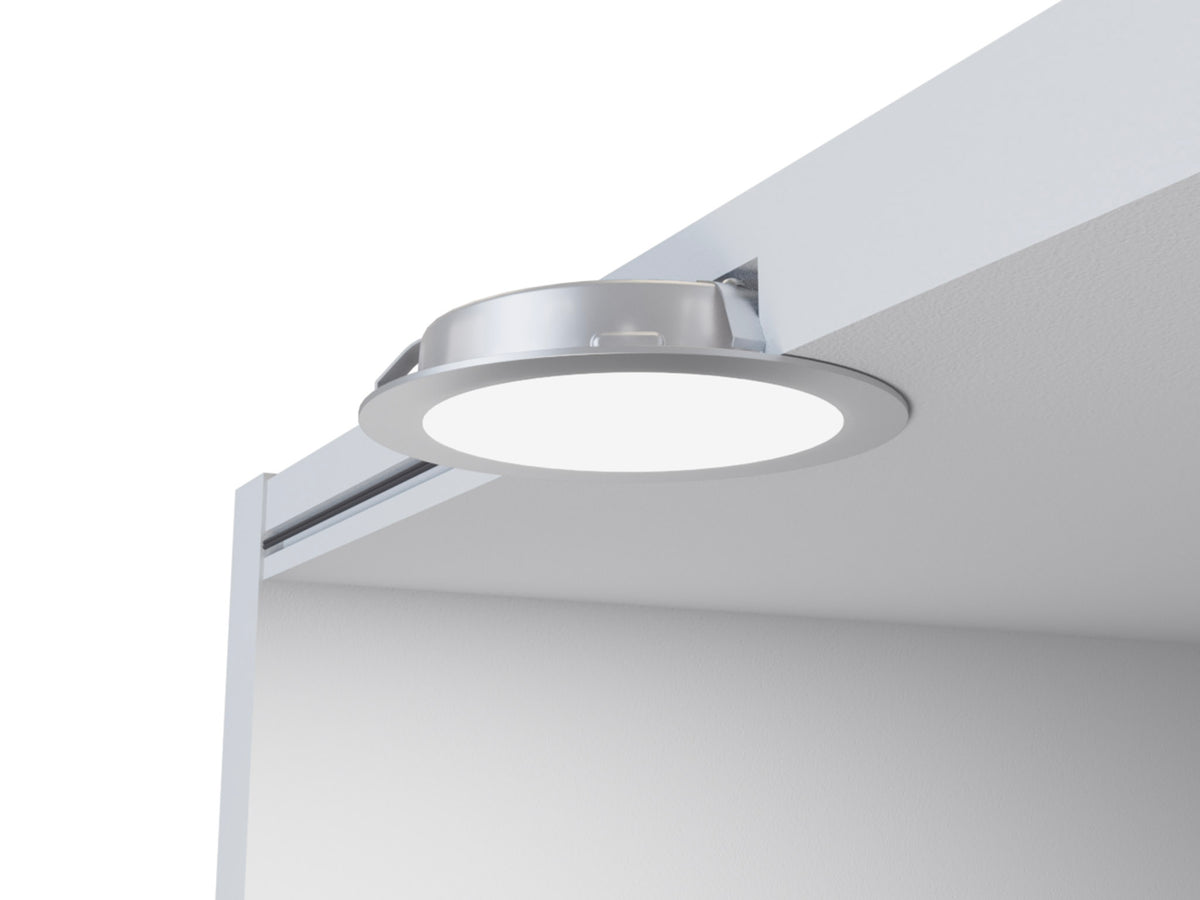

  • Installation: recessed or surface mounting

SKU 203.10.22.004

  • Colour System: Monochrome, 2-pin
  • Colour Temperature: 3000 K
  • Kind of Light: Down Light
  • Colour Rendering Index Ra: 93
  • Luminous Flux: 299 lm/m
  • Lumen Efficacy: 120 lm/W
  • Dimensions (LxWxH): 65 x 13.7 mm
  • Colour / Finish: stainess steel
  • Material: aluminium + stainless steel
  • Number of LEDs: 40/m
  • Input Voltage: 24 V DC
  • Wattage: 2.5 W
  • Beam Anngle: 120°
  • with Sensor: no
  • Energy Efficiency Class: E
  • Degree of Protection: IP20
  • Drill hole: Ø 58 x 13 mm
  • Installation: recessed or surface mounting

Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.

Product features
SKU
203.10.22.004
Colour System
Monochrome, 2-pin
Colour Temperature
3000 K
Kind of Light
Down Light
Colour Rendering Index Ra
93
Luminous Flux
299 lm/m
Lumen Efficacy
120 lm/W
Dimensions (LxWxH)
65 x 13.7 mm
Colour / Finish
stainess steel
Material
aluminium + stainless steel
Number of LEDs
40/m
Input Voltage
24 V DC
Wattage
2.5 W
Beam Anngle
120°
with Sensor
no
Energy Efficiency Class
E
Degree of Protection
IP20
Drill hole
Ø 58 x 13 mm
Installation
recessed or surface mounting
