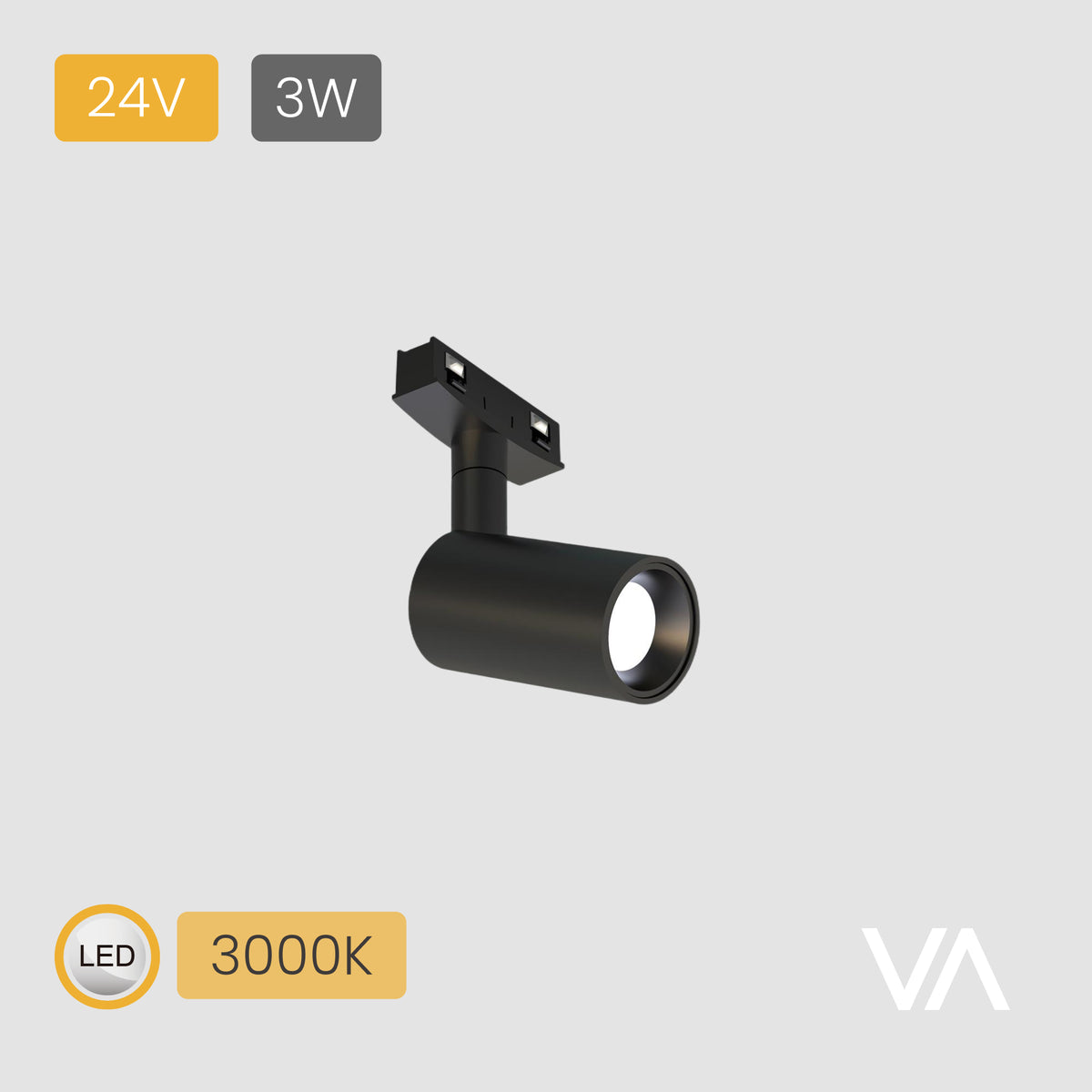

VOXAURA Showcase light, TL4005, Mini track light, 24V, 3W, 2-pin Monochrome, Black

Colour Temperature: 3000K
Documentation
Brochure
CAD Data1
CAD Data2
Installation Manual
Product description

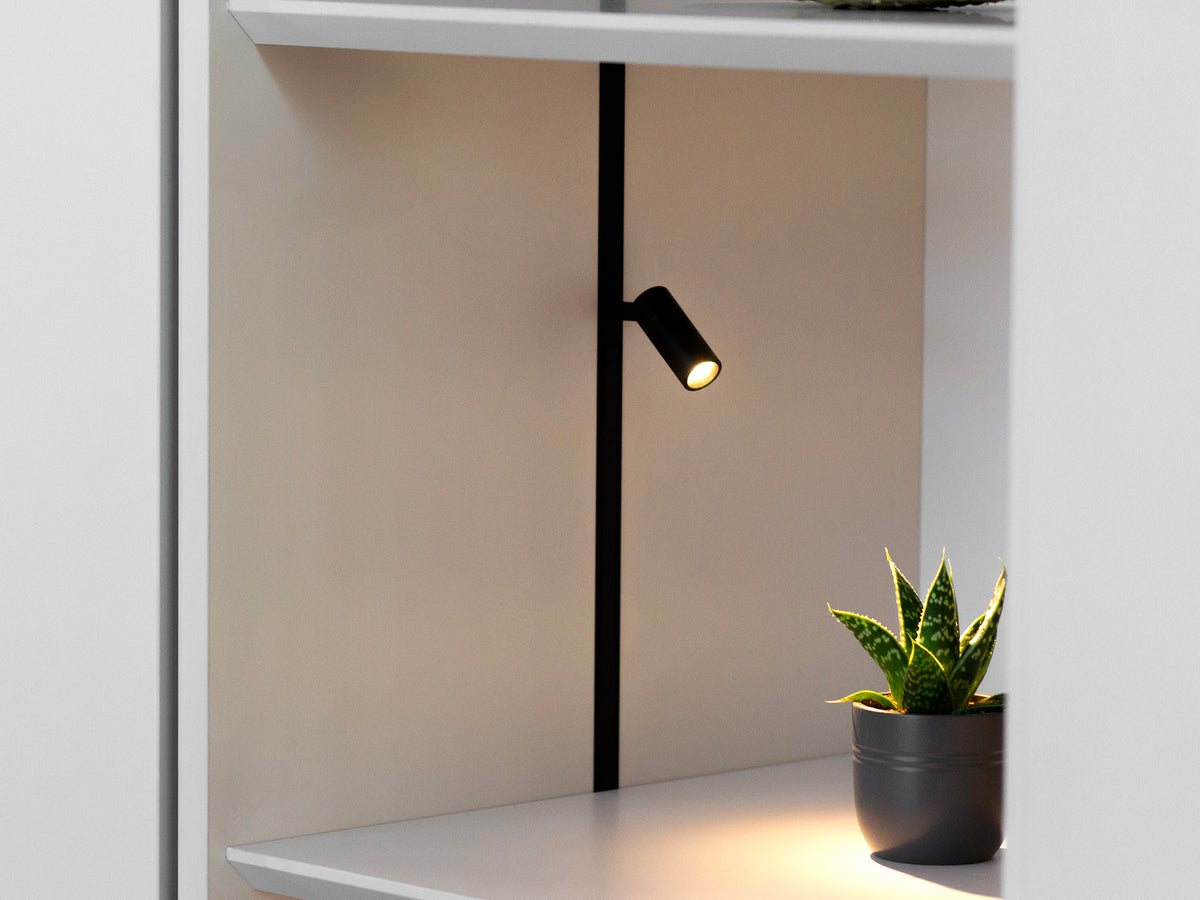

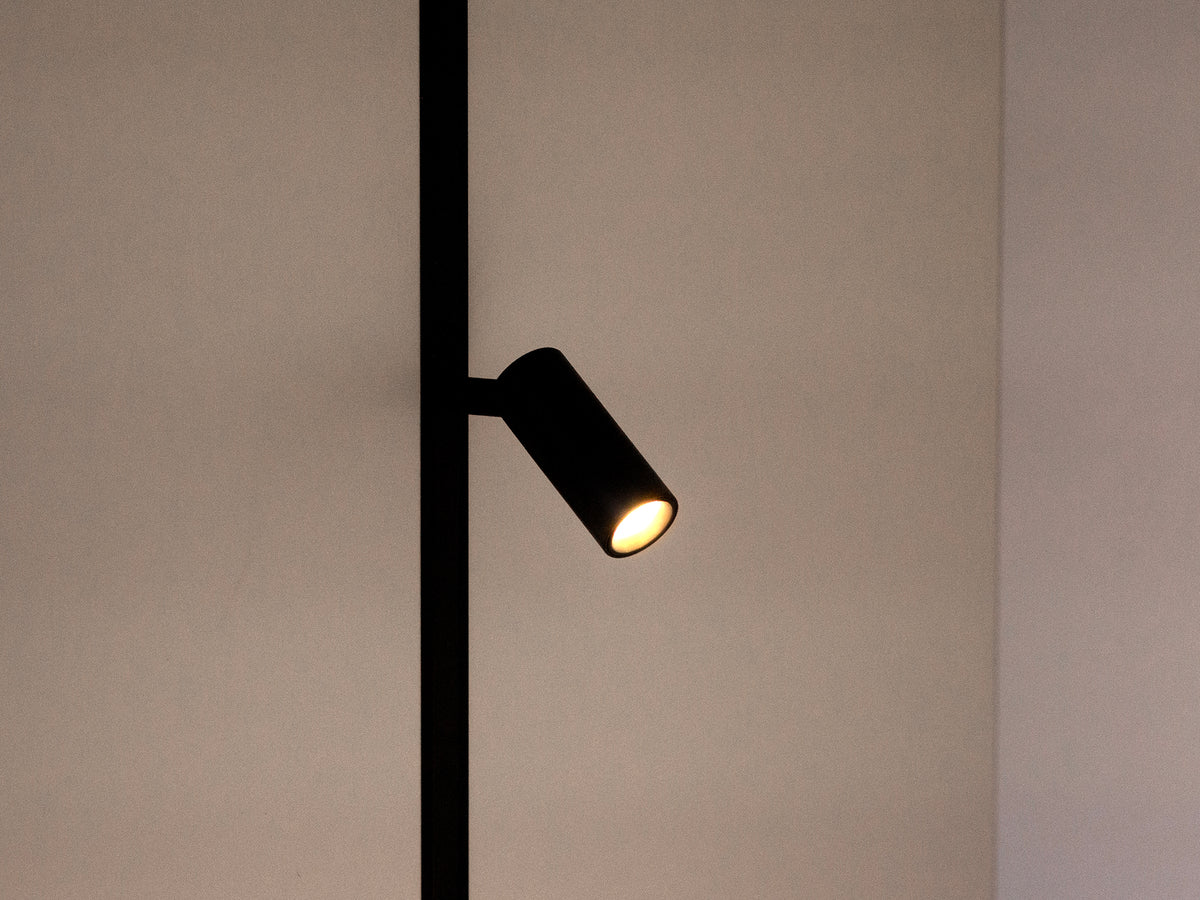

The TL4005 mini-track showcase spotlight provides focused illumination for display cabinets and shelving. The black aluminium light operates at 24 V and 3 W, delivering 390 lm with CRI 93 and a 25° beam. It clips into a compatible track, supports dimming with compatible controls and is rated IP20. Available in separate 3000 K and 4000 K variants.

Supplied as one spotlight. TL4002 or TL4003 tracks are sold separately. Select a suitable driver based on the total wattage of all connected lights.

Specifications and selection

SKU 204.10.21.004

  • Colour System: Monochrome, 2-pin
  • Colour Temperature: 4000 K
  • Kind of Light: Mini track light
  • Colour Rendering Index Ra: 93
  • Luminous Flux: 390 lm
  • Lumen Efficacy: 130 lm/W
  • Dimensions (LxWxH): 18 x 45 x 47 mm
  • Colour / Finish: black
  • Material: aluminium
  • Number of LEDs: 1
  • Input Voltage: 24 V DC
  • Wattage: 3 W
  • Beam Anngle: 25°
  • with Sensor: no
  • Energy Efficiency Class: E
  • Degree of Protection: IP20
  • Installation: surface mounting

SKU 204.10.21.003

  • Colour System: Monochrome, 2-pin
  • Colour Temperature: 3000 K
  • Kind of Light: Mini track light
  • Colour Rendering Index Ra: 93
  • Luminous Flux: 390 lm
  • Lumen Efficacy: 130 lm/W
  • Dimensions (LxWxH): 18 x 45 x 47 mm
  • Colour / Finish: black
  • Material: aluminium
  • Number of LEDs: 1
  • Input Voltage: 24 V DC
  • Wattage: 3 W
  • Beam Anngle: 25°
  • with Sensor: no
  • Energy Efficiency Class: E
  • Degree of Protection: IP20
  • Installation: surface mounting

Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.

Product features
SKU
204.10.21.003
Colour System
Monochrome, 2-pin
Colour Temperature
3000 K
Kind of Light
Mini track light
Colour Rendering Index Ra
93
Luminous Flux
390 lm
Lumen Efficacy
130 lm/W
Dimensions (LxWxH)
18 x 45 x 47 mm
Colour / Finish
black
Material
aluminium
Number of LEDs
1
Input Voltage
24 V DC
Wattage
3 W
Beam Anngle
25°
with Sensor
no
Energy Efficiency Class
E
Degree of Protection
IP20
Installation
surface mounting
