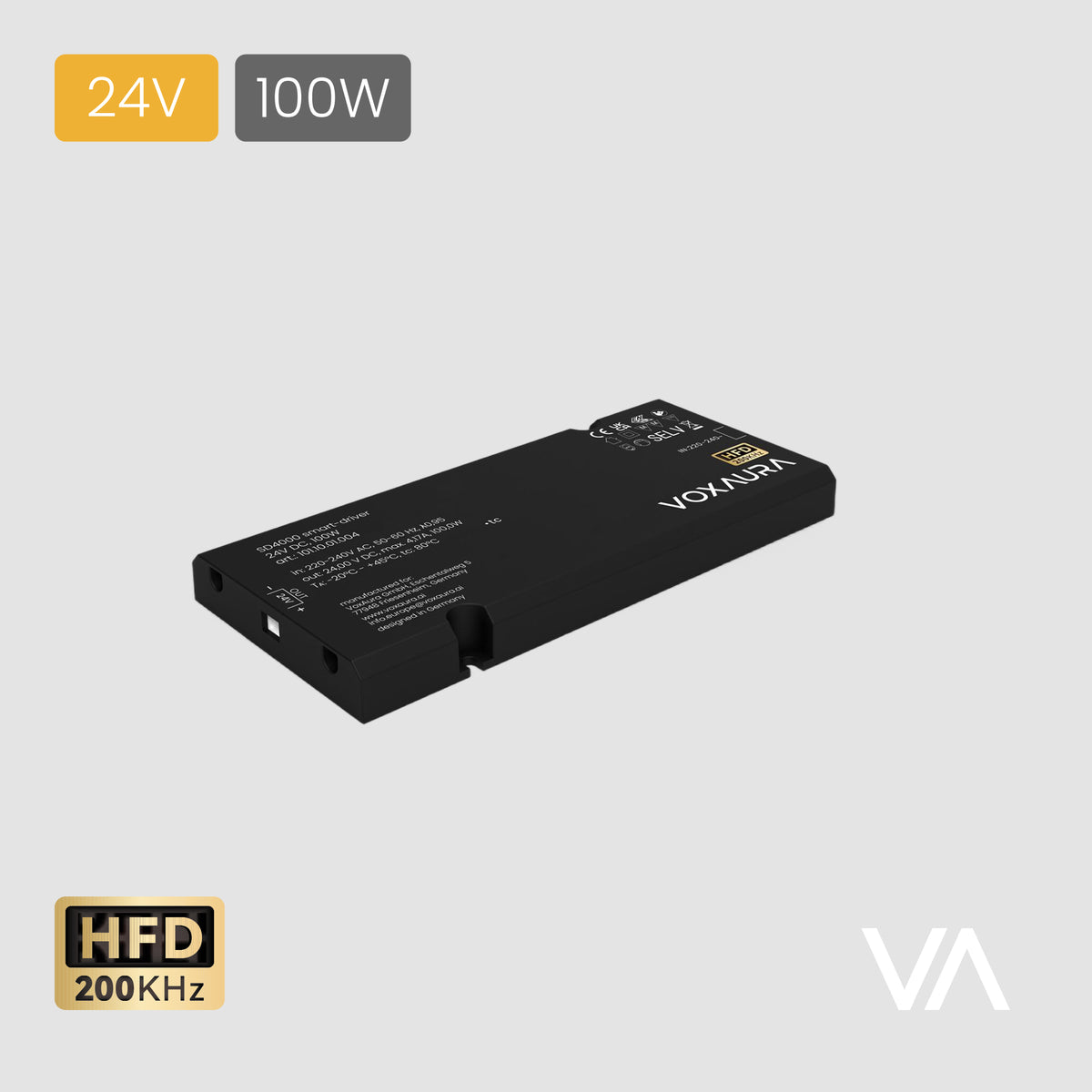

VOXAURA Smart-Driver, SD4000, 24V, 100W, HFD
The SD4000 Smart-Driver provides a 24 V DC, 100 W supply for a modular VOXAURA wireless lighting system. Its high-frequency design has a slim 15 mm profile and accepts a 220–240 V input. A single 2-pin output connects to the required control unit, which determines the supported colour system and switching functions. Control is provided through compatible wireless switches or a remote.
Supplied as one driver with fixings. The control unit and primary mains lead are sold separately. Install with adequate airflow at −20°C to +45°C and keep the driver-to-light cable run within 6 m. The specified wireless range is up to 6 m from switch to control unit and 10–30 m between control units in the Thread mesh.
Specifications and selection
SKU 101.10.01.004
- Dimensions (LxWxH): 167 x 75 x 15 mm
- Colour / Finish: black
- Material: plastic
- switching function: add control box
- Connected output ports: 1x socket 2-pin 24 V. 4.16 A
- Output socket quantity: 1
- Switch Connections: only control box to connect
- Input Voltage: 220 - 240 V
- Input Frequency: 50-60 Hz
- Output Voltage: 24 V DC
- Power Rating: 100 W
- HFD (high frequency driver): 200 KHz
- Ambient Temperature: - 20°C to + 45°C
- Degree of Protection: IP20
- Order Reference / Needed Accessories: Order control unit separately. Order primary lead separately.
Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.
