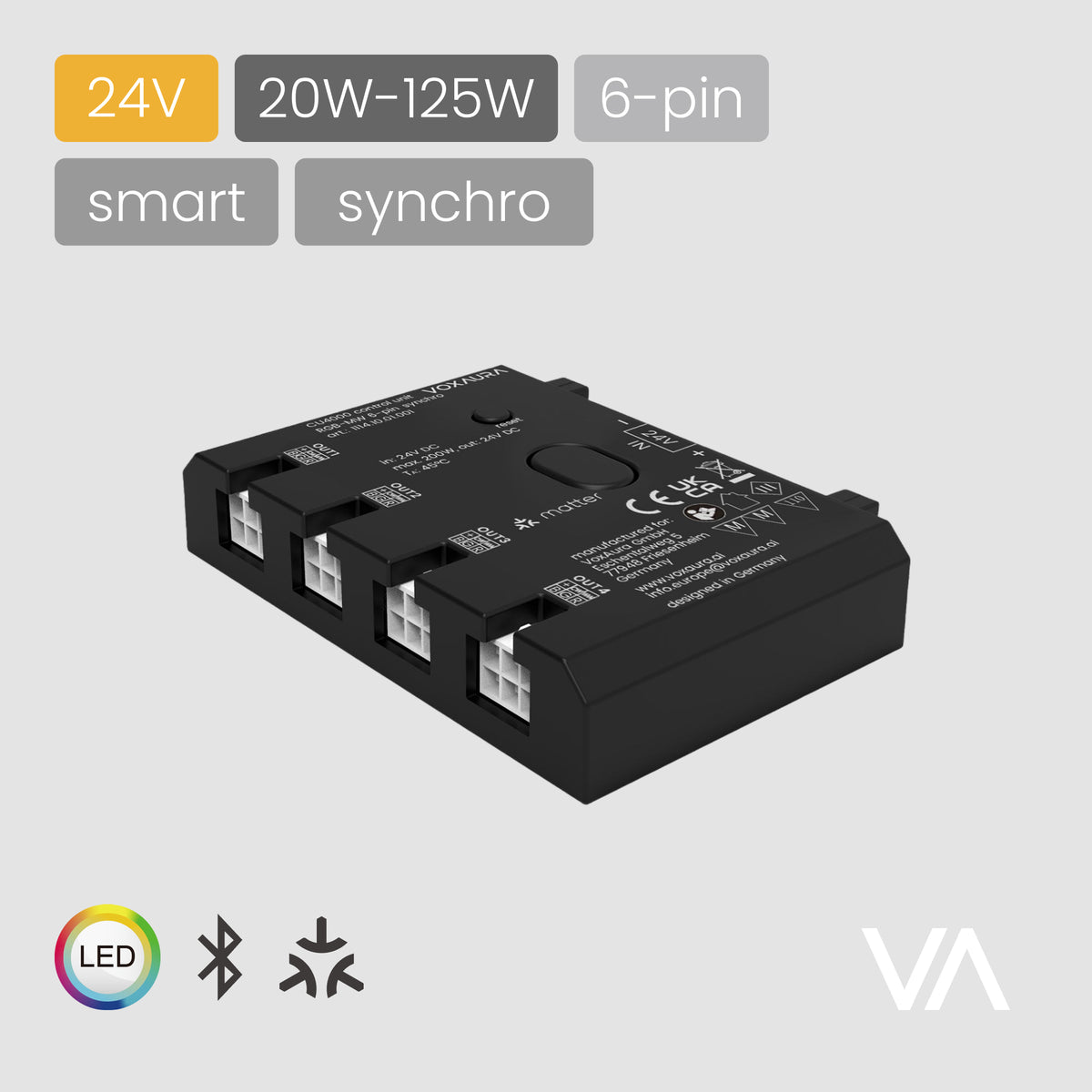

VOXAURA Control Unit, CU4000, 24V, 6-pin RGB-Multi-white, synchro
The CU4000 24 V control unit configures a VOXAURA Smart-Driver for synchronous control of RGB and multi-white lighting. It provides four 6-pin outputs and supports on/off switching and 0–100% dimming, with adjustable white colour temperature and RGB colour selection via a compatible remote. Its maximum capacity is 150 W, with the available output limited by the connected Smart-Driver.
Supplied as one control unit. The Smart-Driver and a compatible remote control are sold separately and must match the colour system. Matter-over-Thread integration requires a Matter-compatible smart-home device with Thread border-router functionality. The specified range is up to 6 m from switch to control unit and 10–30 m within the Thread mesh.
Specifications and selection
SKU 114.10.01.001
- Colour System: RGB-Multi-white, 6-pin
- Dimensions (LxWxH): 75 x 50 x 15 mm
- Colour / Finish: black
- Material: plastic
- Connected output ports: 4x 6-pin
- Input Voltage: 24 V DC
- Power Rating: max. 150 W (depends on the output wattage of LED driver)
- Order Reference / Needed Accessories: Order smart-driver separately. Order remote control separately.
Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.
